I make effects pedals to order. (Pepers' Pedals)

Postby Lummoxgrinder » Tue Jan 26, 2010 11:36 pm

Has anybody on punkas made their own pedals. I just finished building a pedal that contains a Big Muff Pi Green Russian and a Way Huge Red Llama. It's pretty decent as far as home builts go. Would definitely build some more. Cost me a shit load less than buying a Big Muff and was hella fun to build.

Edit.

I'm now making pedals to order. Pretty much anything. Just try me.
Last edited by Lummoxgrinder on Sun Jul 08, 2012 11:00 pm, edited 3 times in total.

User avatar
Sasquatch
Posts: 2913
Joined: Mon Mar 06, 2006 7:27 pm
Location: TRON

Re: Making your own effects pedals

Postby Sasquatch » Wed Jan 27, 2010 12:27 am

Really want to learn how to, but have minimal electronics knowledge. that pedal of yours sounds like a fuckin beast, nice one...

User avatar
timi
Posts: 1460
Joined: Mon Sep 02, 2002 6:21 pm
Location: Wellington

Re: Making your own effects pedals

Postby timi » Wed Jan 27, 2010 1:04 am

I built a fuzz face, it's pretty cool. Haven't wired the switch yet so it's just on all the time.

Keen to see a pic of that one you made.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Wed Jan 27, 2010 7:19 am

Yeah I'll chuck some pics up when I find my camera. I used the smallest box possible so everything is fucking jammed into it was tricking getting it all to work but got there in the end. It has a crossover switch too so you can got BM - RL or RL - BF. That took a few goes and a few drawing to get right and a 4PDT switch

User avatar
Fried Mayonnaise
Posts: 491
Joined: Thu Dec 06, 2007 8:24 pm
Location: Dunedin
Contact:

Re: Making your own effects pedals

Postby Fried Mayonnaise » Wed Jan 27, 2010 12:27 pm

is keen to employ you to build a RAT when ive got some spare monies.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Wed Jan 27, 2010 6:41 pm

Sure man I'll do it for ya. I'm real keen to hear what they sound like too.

User avatar
[Tim]
Posts: 5051
Joined: Sat Oct 16, 2004 1:30 am

Re: Making your own effects pedals

Postby [Tim] » Wed Jan 27, 2010 7:15 pm

Killer! How much did it cost you all up dude?

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Wed Jan 27, 2010 8:16 pm

About $100 or so that's with bits coming from the states too

slob
Posts: 641
Joined: Thu Apr 21, 2005 8:12 pm
Location: in the dining room

Re: Making your own effects pedals

Postby slob » Wed Jan 27, 2010 9:52 pm

Lummoxgrinder wrote:Yeah I'll chuck some pics up when I find my camera. I used the smallest box possible so everything is fucking jammed into it was tricking getting it all to work but got there in the end. It has a crossover switch too so you can got BM - RL or RL - BF. That took a few goes and a few drawing to get right and a 4PDT switch

it can be done with 3poles, or do you have an led?

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Wed Jan 27, 2010 11:01 pm

Bullshit... It's not an on off switch. You show me a drawing of it and I'll believe you.


That's how I did it

Switching between either BM - RL or RL - BM
It's a cross over between two inputs and two outputs

Can't use 3poles cos you need separation between the two pedals otherwise it would just short. Trust me I deal with all this kind of switching gear all the time.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Wed Jan 27, 2010 11:27 pm

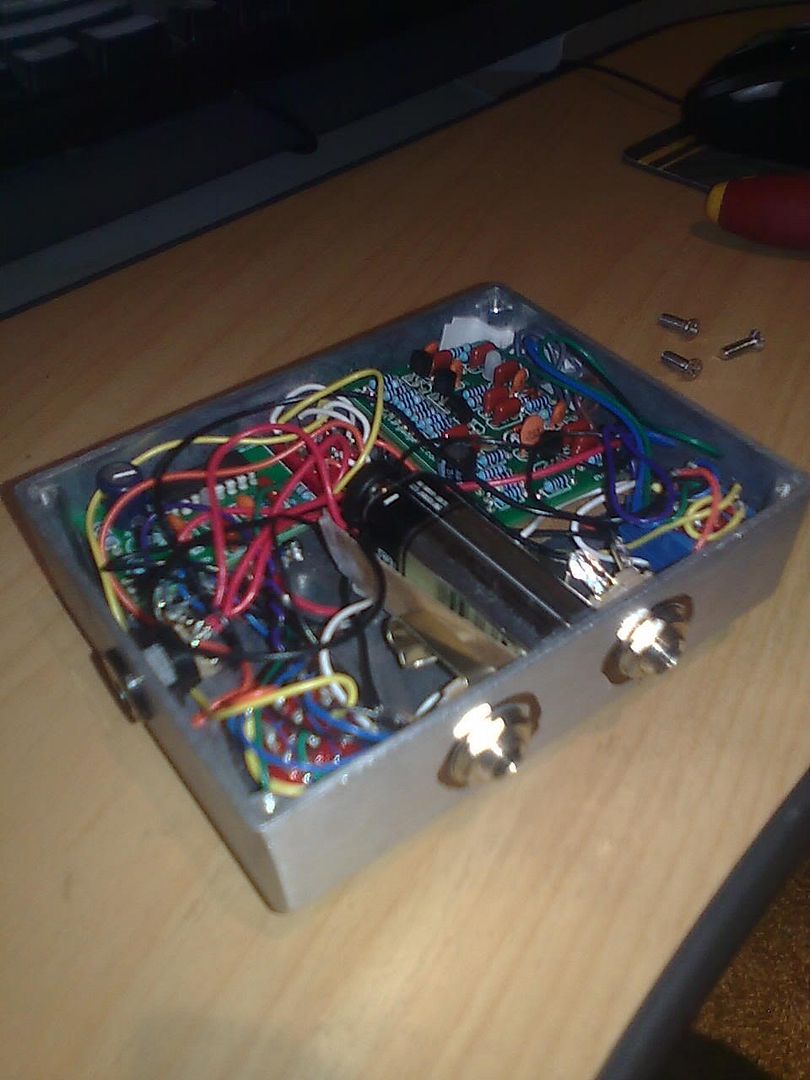

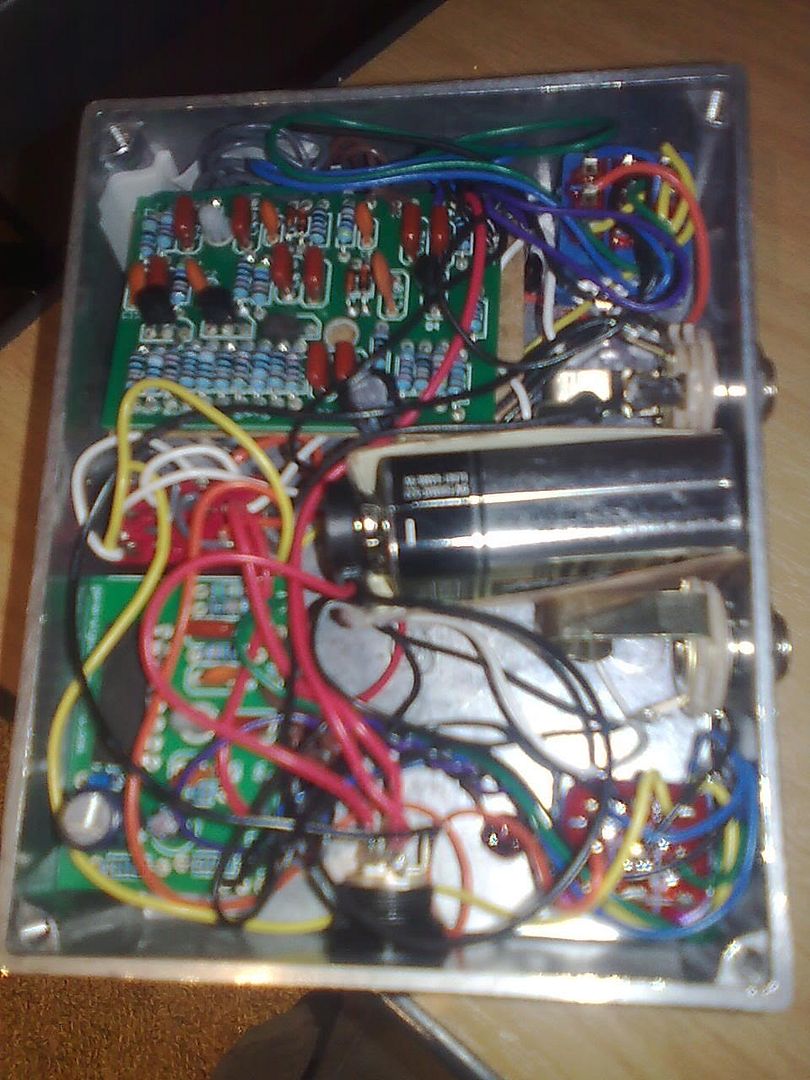

Photos from cellphone are not great. Can't find my real camera



User avatar
Bernie Galaxy
Posts: 4270
Joined: Sat Oct 19, 2002 9:23 am
Location: Wellington

Re: Making your own effects pedals

Postby Bernie Galaxy » Thu Jan 28, 2010 10:29 am

Nice tight squeeze. I built a pretty sweet super high gain ring mod / distortion pedal by fucking around with a jaycar voice changer kit. I want to figure out putting a 555 oscillation timer in it to modulate the Q point but another day I guess....

slob
Posts: 641
Joined: Thu Apr 21, 2005 8:12 pm
Location: in the dining room

Re: Making your own effects pedals

Postby slob » Thu Jan 28, 2010 5:13 pm

Lummoxgrinder wrote:Bullshit... It's not an on off switch. You show me a drawing of it and I'll believe you.

[img]pic[/img]

That's how I did it

Switching between either BM - RL or RL - BM
It's a cross over between two inputs and two outputs

Can't use 3poles cos you need separation between the two pedals otherwise it would just short. Trust me I deal with all this kind of switching gear all the time.


Trust me :wink:

triple pole, double throw:

You could use your extra pole for one or two leds :)

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Thu Jan 28, 2010 5:52 pm

Hmm. your right. The way I drew I just couldn't get it right to work off the 3pole but meh. Good to know for next time. Have saved the image. haha

User avatar
timi
Posts: 1460
Joined: Mon Sep 02, 2002 6:21 pm
Location: Wellington

Re: Making your own effects pedals

Postby timi » Thu Jan 28, 2010 6:14 pm

Did you get the PCBs from somewhere like general guitar gadgets?

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Thu Jan 28, 2010 6:18 pm

Yup that's exactly where I got them. Had most of the other parts at home just had to buy some pots and shit.

rudimentary marcu
Posts: 32
Joined: Sat Oct 23, 2010 11:23 pm

Re: Making your own effects pedals

Postby rudimentary marcu » Sun Nov 07, 2010 10:32 am

Lummoxgrinder wrote:About $100 or so that's with bits coming from the states too


holy fuck thats schweetbix! 8)

nice pedal by the way. green russians are definately the crustiest of them all.
ive got a v7 black russian, which is the same as late green russians but with different enclosure box.

ive always wanted to check out building one of the op-amp big muffs
theyre smaller and cheaper circuits cause theirs no transistors in em, and it uses intergrated circuits instead
but their sound is pretty unique to other muffs. more grimm/necro maybe...lol...

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Sun Sep 18, 2011 12:42 pm

Currently Building a whole heap of clone pedals. Waiting on boxes and stomp switches

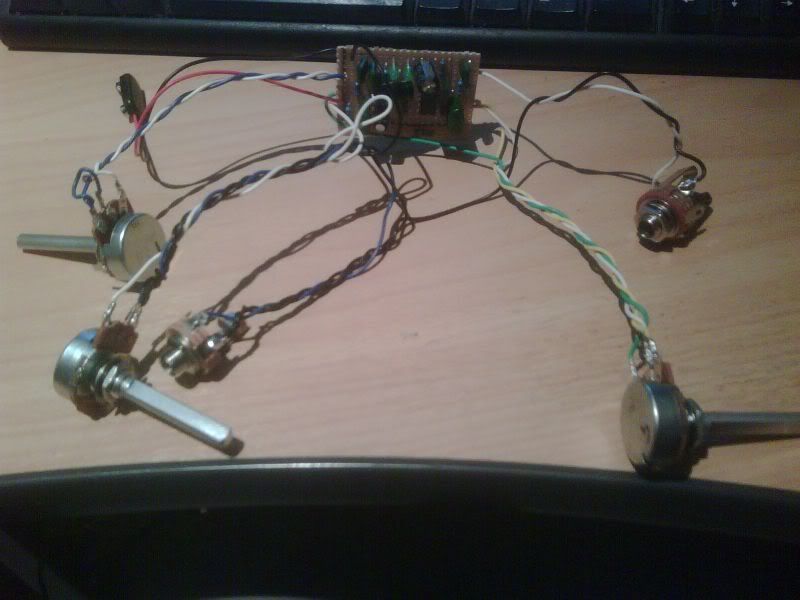

Made this DAM Meathead last week.

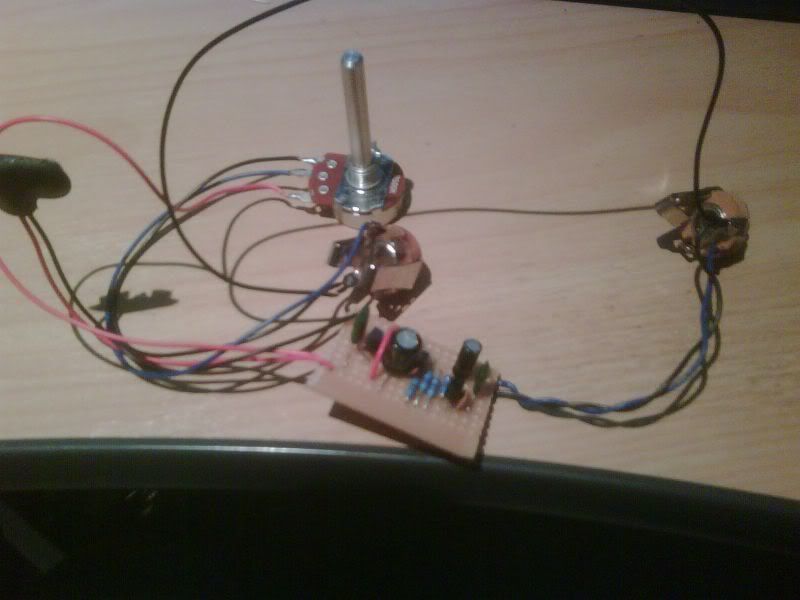

And last night I made a MI Crunch Box.
This pedal Fucking rules!!!

Also built a Krank Distortus Maximus last night but did have the right pots for it so couldn't finish and test it.
Got three Big Muff Green Russians I have to build for some people soon too.


If anybody wants a pedal made I have schematics for about 150 pedals.

User avatar
ghetto ninja
Posts: 11424
Joined: Wed Aug 10, 2005 8:13 pm
Location: Knee deep in a suburban nightmare

Re: Making your own effects pedals

Postby ghetto ninja » Sun Sep 18, 2011 8:28 pm

You got the schematics for a Fuzz war bro?
How hard to make a combo of a fuzzwar and a russian muff and hiff them into one pedal?
Martyrdamn wrote:Said 'hey baby gurl' to about seven girls tonight,
turns out girls don't like guys talking about getting up in their guts,
fagets, right.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Sun Sep 18, 2011 9:34 pm

ghetto ninja wrote:You got the schematics for a Fuzz war bro?
How hard to make a combo of a fuzzwar and a russian muff and hiff them into one pedal?


I have a schematic but I'm not sure if it's verified. Can always give it a go.

Oh it's pretty easy to chuck more than one pedal in a box.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Mon Sep 19, 2011 9:09 pm

Just found a schematic for this thing. Sounds pretty decent

[youtube]http://www.youtube.com/watch?v=-tqpiDL3Nfg[/youtube]

imperiumdiabolus
Posts: 543
Joined: Sat Mar 01, 2003 11:33 am

Re: Making your own effects pedals

Postby imperiumdiabolus » Tue Oct 04, 2011 10:48 pm

you prob have a thousand cunts wanting you to build pedals 'cos of this thread now,so ill make it a 1001-pm'd.

User avatar
dclxvi
Posts: 13562
Joined: Mon Sep 09, 2002 5:50 pm
Location: pissy shitty bloddy period rape shit cum food stains

Re: Making your own effects pedals

Postby dclxvi » Wed Oct 05, 2011 1:26 am

my meathead clone is almost done, Ryan ordered in some new capacitors and shit to match to the OG one he has a bit closer - had a quick thrash on it a while back just as a harness and it fuckin ruled.
Kerry wrote:Then at an old age, the neighbour's dog thought it would be crakup to maul him and he died so we chucked him up in the ground.


Cosmo Kramer wrote:i have full qualifications (john grisham novels 1-10) and i am yet to sit the bar exam but i know i will pass

User avatar
dclxvi
Posts: 13562
Joined: Mon Sep 09, 2002 5:50 pm
Location: pissy shitty bloddy period rape shit cum food stains

Re: Making your own effects pedals

Postby dclxvi » Wed Oct 05, 2011 1:32 am

in other news, the Fuzz War is one of the best fuzz pedals I've ever used - massive, hideous tone, it's fuckin great.

A bit murkier than a big muff, esp. on bass - i normally cut all the highs out with the ATK active EQ but had to leave a little in there to get that attack. fuckin phenomenal on guitar though.
Kerry wrote:Then at an old age, the neighbour's dog thought it would be crakup to maul him and he died so we chucked him up in the ground.


Cosmo Kramer wrote:i have full qualifications (john grisham novels 1-10) and i am yet to sit the bar exam but i know i will pass

skalie
Posts: 236
Joined: Mon Aug 28, 2006 11:55 pm

Re: Making your own effects pedals

Postby skalie » Thu Oct 06, 2011 8:52 pm

Without wanting to spam or nothing, typing "Tym guitars" into google will lead you to a retro pedal maker in Brisbane, he also clones Mosrite guitars.

His Facebook link is probably the most up to date.

Disclaimer: Never heard any of them live, but anyone who has a pedal called "this machine kills fascists" can't be all bad.

imperiumdiabolus
Posts: 543
Joined: Sat Mar 01, 2003 11:33 am

Re: Making your own effects pedals

Postby imperiumdiabolus » Fri Oct 07, 2011 3:49 pm

LG-you got the 2 or 3 knob fuzz war?tried a bunch of rockshop stock(=limited)but kept going back to the HM2.might have to troll around on FSB.org and see what schems are available.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Sat Oct 08, 2011 11:48 pm

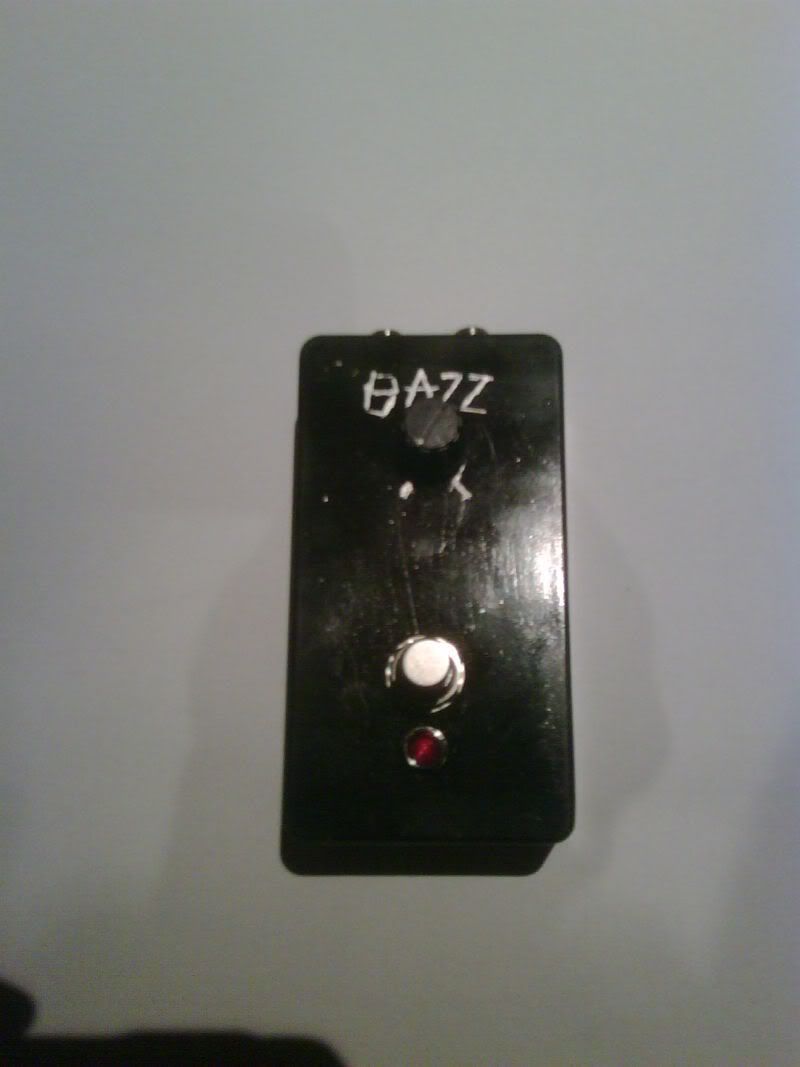

Just finished a build for Sam our guitarist for his birthday. Designed and built by me. I call it the "Filthy Bazz" Really feral sounding one knob fuzz pedal.



User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Sun Jan 01, 2012 7:02 pm

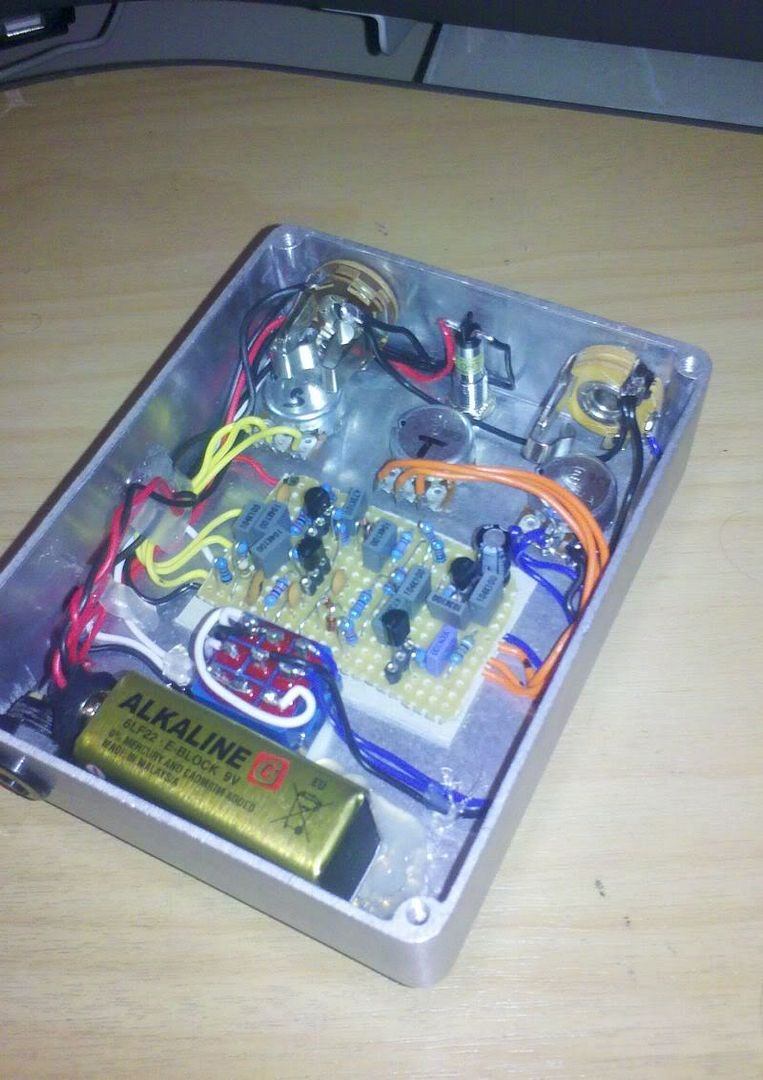

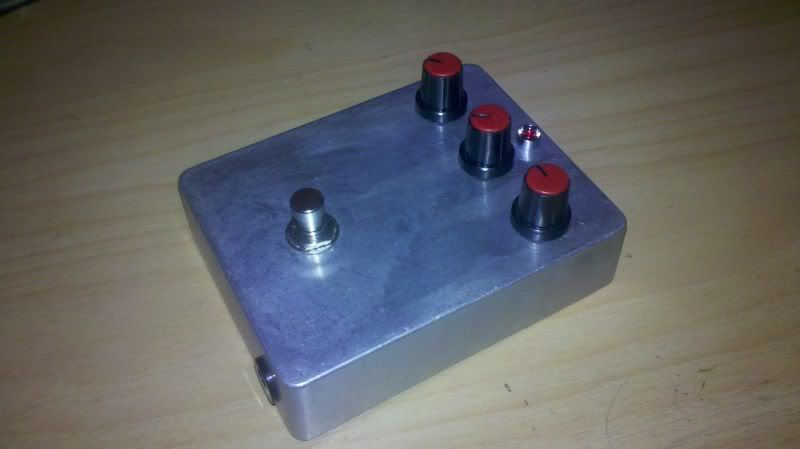

Built a Big Muff Clone just recently from scratch for a client in CHCH. It's based on a green russian but has the creamy dreamer style mods. Thing sound frecking awesome!! So much sustain!!


Just started building a MXR Phase 90.
Also have two Dark tuned Meatheads and a MI Crunch Box ready to put in cases and test.
Ah 2012 a year of pedal building.

User avatar
Lummoxgrinder
Posts: 1966
Joined: Sat Feb 18, 2006 3:15 pm
Location: North Dunedin
Contact:

Re: Making your own effects pedals

Postby Lummoxgrinder » Sat Feb 04, 2012 10:34 am

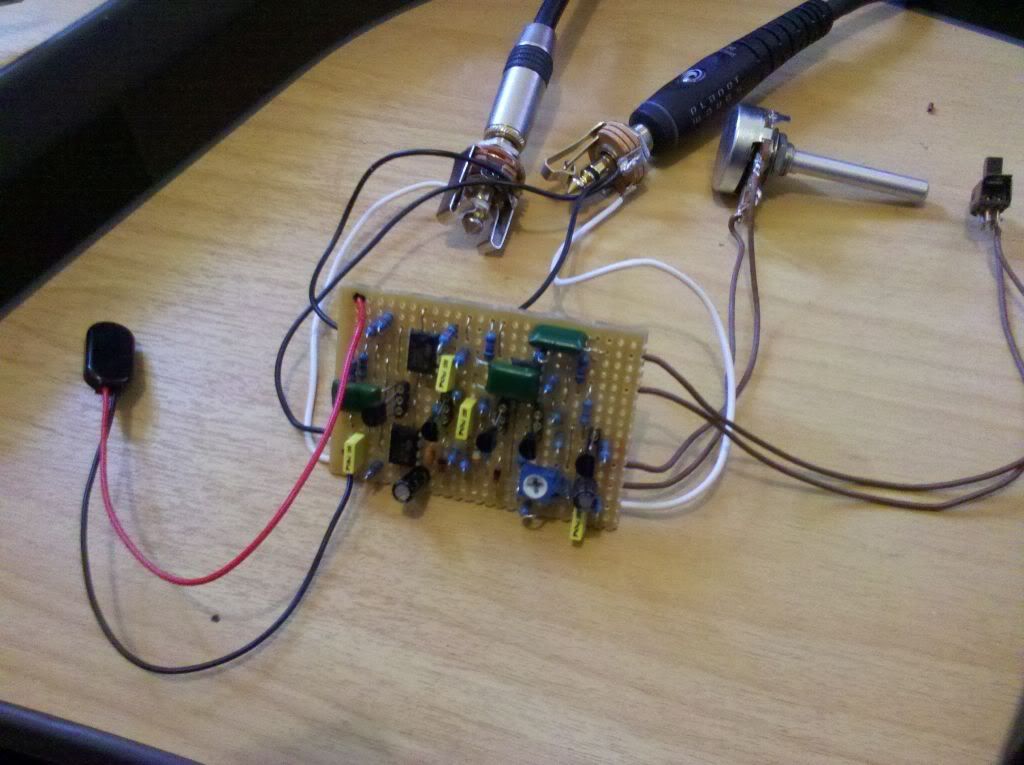

Just finished my MXR P90. Had some dumb issues on it where I put components into wrong holes but all good now. Things sounds awesome. I really like the MXR range of pedals. Going to build the MXR Blue Box next I think.

Nathanael
Posts: 1161
Joined: Thu Sep 24, 2009 7:26 pm

Re: Making your own effects pedals

Postby Nathanael » Sun Feb 05, 2012 2:40 am

Blue box is sick but I would look for a mod that raises the output level.
General Mutante wrote:Every wristie is a performance as far as I'm concerned.
